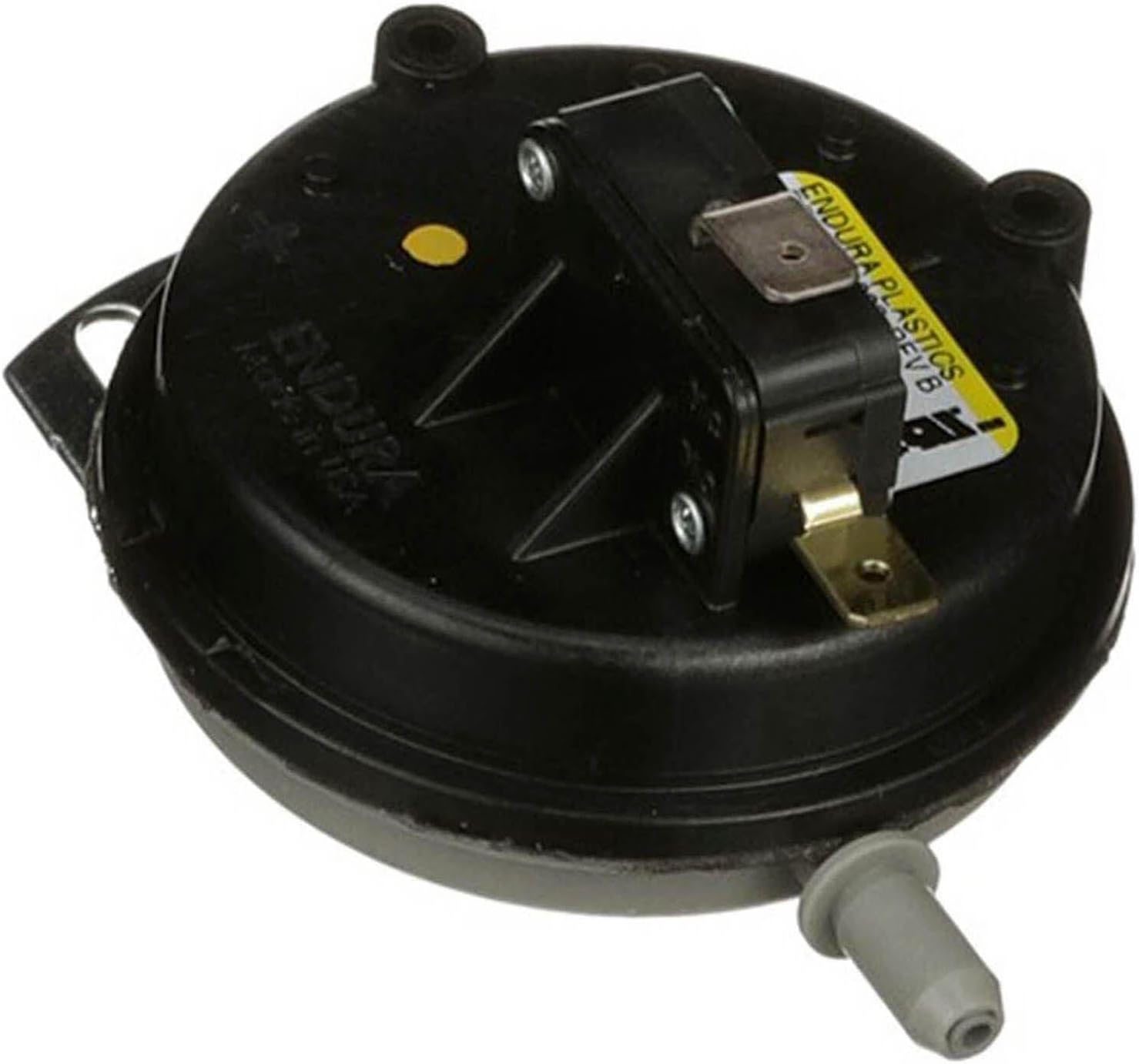

Pellet Stove Vacuum Pressure Switch for Quadra-Fire, PelPro, Pleasant Hearth, and Heatilator Eco Choice Pellet Stoves and Inserts

The vacuum switch is located inside the mechanical area of the appliance and will have a black or reddish-orange hose attached. This switch closes the feed circuit when negative pressure above .05" WC is present in the firebox. This pressure switch is a safety device to shut off the feed motor if the exhaust or the heat exchanger system is excessively dirty, the venting is obstructed, or if the firebox door is not fully closed and properly sealed. This is the newest style switch and replaces all previous vacuum switches. Please Note: This pressure switch does not come with a hose. If you need the switch and the hose you want part, SRV240-0450

• Part# SRV7000-531. Replaces all previous Quadra-fire vacuum switches, including SRV7000-166, 812-3430, 812-1990 and SRV7000-447
• Compatible with many pellet stoves such as, Quadra-Fire: 1000, 1100i Insert, 1200 Freestanding, 1200i Insert, 800 Nova, Castile Freestanding, Castile Insert, Contour, Edge 60, Mt Vernon AE, Mt Vernon AE Insert, Mt Vernon E2, Mt Vernon E2 Insert, Outfitter I, Outfitter II, Santa Fe, Santa Fe Insert, Trekker, Trekker Insert; PelPro: PP130, PP150,PP60, PP70, PPC90, TSC90; Heatilator Eco-Choice: CAB50, PS35, PS50; Pleasant Hearth: PH35PS, PH50CABPS, PH50PS;
• This switch closes the feed circuit when negative pressure above .05" WC is present in the firebox. This pressure switch is a safety device to shut off the feed motor if the exhaust or the heat exchanger system is excessively dirty, the venting is obstructed, or if the firebox door is not fully closed and properly sealed.
